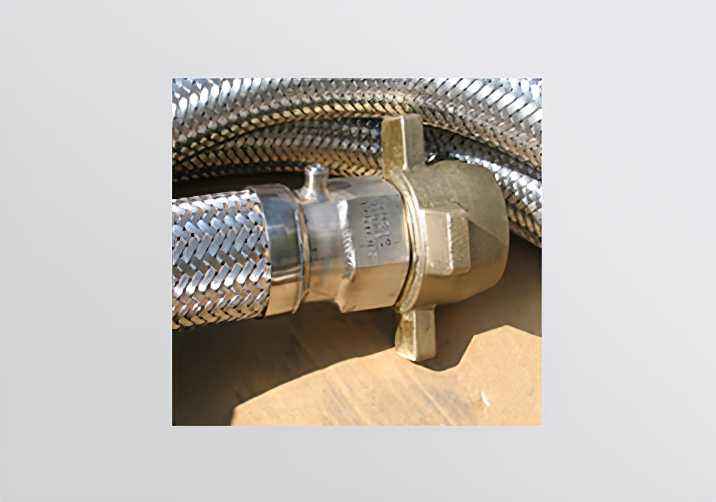

- SS convoluted Hose Grade AISI 321 with double braid
- Size: 1 ½" & 2 ½"
- Application: Liquid Nitrogen
- NIT End fittings
- High flexibility, high working pressure, suitable for areas of high vibration
- Double layers of SS braids (Grade 304) prevents elongation of the convoluted hose and increases/maintains the WP of the hose

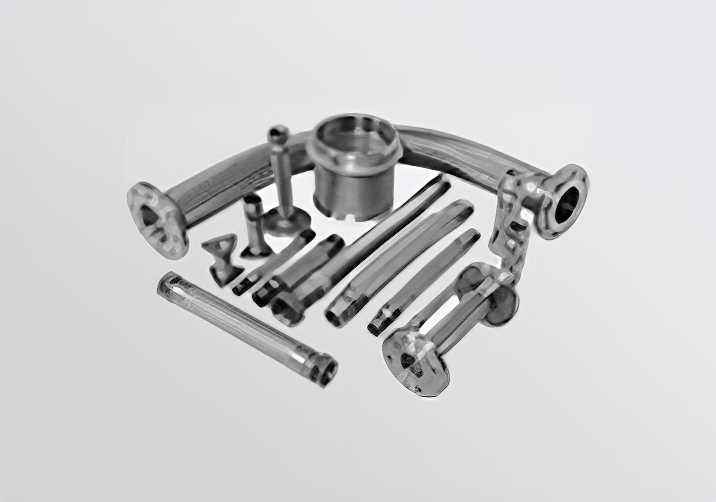

Stainless Steel Hoses

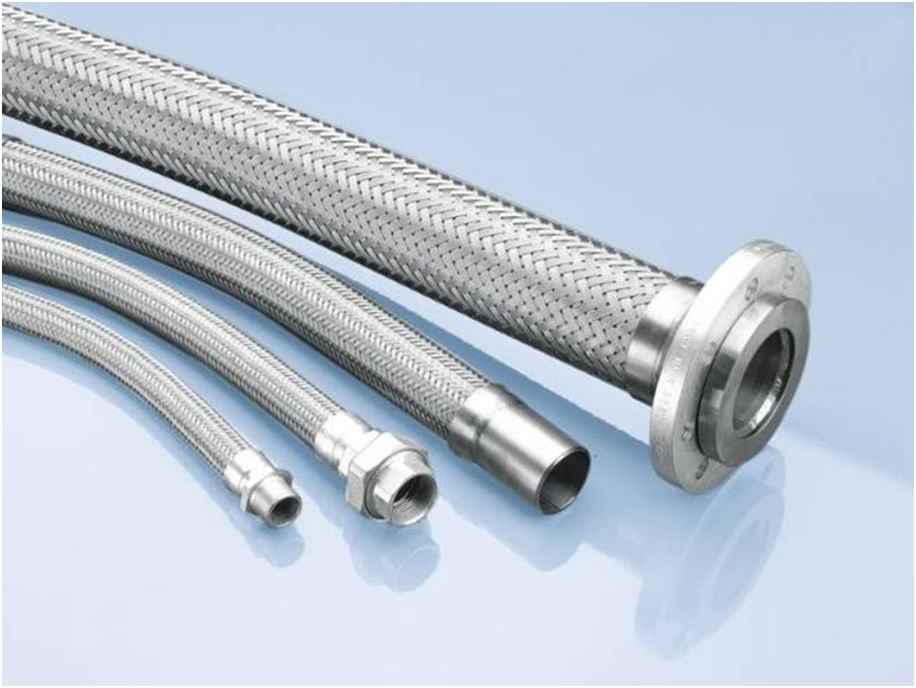

Our stainless steel braided hose assemblies are the most superior range of flexible metal hoses on the global market. The assemblies can be made in 304, 316, 316L, 321 and exotic materials such as Monel./p>
Our facility offers a broad range of corrugated inner core diameters and designs, multi-braiding capabilities, and engineered assembly expertise to meet various applications. The corrugated hoses have self-draining helical design, or a more robust and flexible annular design, available with a ¼" diameter (6mm) and larger.
These metallic hoses are braided to give strength when the hose is pressurized and to provide a solid protective cover during use. Typical materials such as 316L and 321 stainless steel can withstand extreme variations in temperature, from cryogenic up to 1500°F (815°C). Multiple braid layers can increase working pressure as well as with corrugation shape, profile, wall thickness and material type. With differing engineering techniques involved and excellent burst strength-to-wall thickness ratio, these hoses are relatively lightweight compared to equivalent non-metallic hose alternatives in the market.
We offer assembly services to fit your custom specifications - simply contact us.
